PX12001

Maximum Capacity	12,000 g
Readability	0.1 g
Pan Size	248 mm x 193 mm
Item Number:	30868075

Request a Quote ADD TO QUOTE LIST

View All Pioneer™ Precision High Capacity Models

Overview
Specs
Accessories
Documents

Overview

The Pioneer PX Series combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and educational settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.

Applications

Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination, Formulation

Display

2-Line LCD with Backlight

Operation

Power Adaptor

Communication

RS232, USB

Construction

Metal base, plastic top housing, removable stainless steel pan, weigh-below-hook

Design Features

User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages

Specifications

Maximum Capacity	12,000 g
Readability	0.1 g
Pan Size	248 mm x 193 mm
Internal Calibration	InCal™ - Semi Automatic
Draftshield	—
Auto Door	Not Applicable
Auxiliary Display Model	Available as an Accessory
Battery Life	Not Applicable
Communication	USB;RS232
Dimensions	321 mm x 101 mm x 209 mm (LxHxW)
Display	2-Line LCD with Backlight

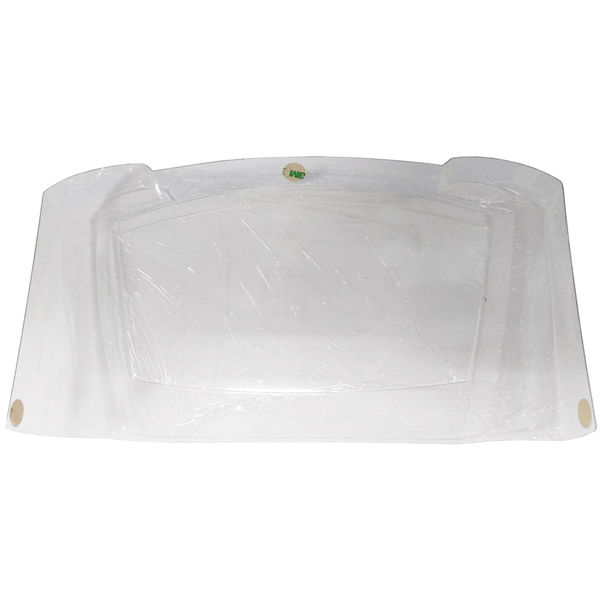

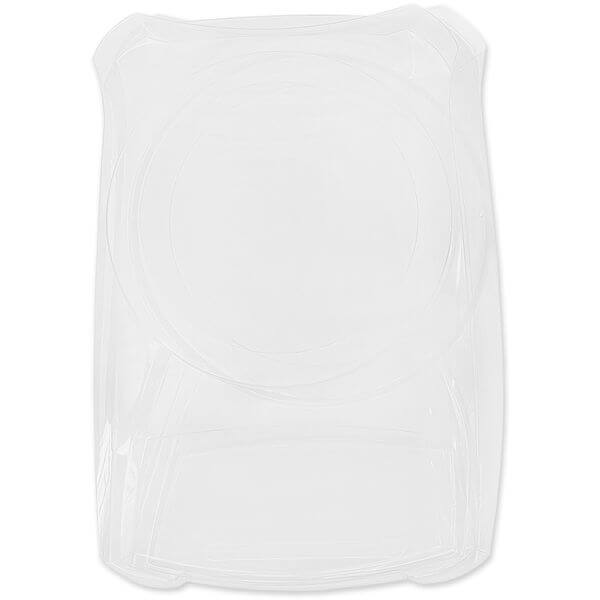

In-Use Cover	Included
Legal for Trade	Not Applicable
Linearity ±	0.2 g
Minimum Weight (USP, 0.1%, typical)	160 g
Net Weight	7.7 lb (3.5 kg)
Pan Construction	Stainless Steel
Power	AC Adapter (Included)
Repeatability, typical	0.1 g
Stabilization Time	1 s
Tare Range	To capacity by subtraction
Units of Measurement	Singapore Tael;Pennyweight;Ounce Troy;Kilogram;Grain;Tical;Custom;Newton;Momme;Taiwan Tael;Baht;Gram;Hong Kong Tael;Pound;Tola;Mesghal;Ounce;Carat
Working Environment	operability guaranteed between 5°C and 40°C;10°C – 30°C, 80%RH, non-condensing
