VX32XW2500L

Maximum Capacity	2,500 lb (1,000 kg)
Readability	0.5 lb (0.2 kg)
Readability (Certified)	0.5 lb (0.2 kg)
Item Number:	80253294

Overview
Specs
Accessories
Documents

Overview

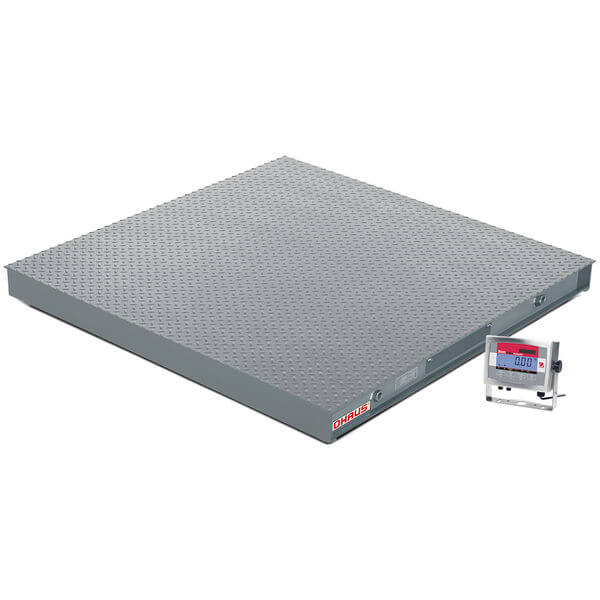

OHAUS VX Series of floor scales is designed to minimize distortion under heavy loads and ensure years of dependable performance. Complete with a durable T32XW washdown indicator, the VX Series displays results in lb. or kg, includes a counting mode, geographical gravity correction for quick adjustment to local conditions, and is NTEP certified (2500L and 5000L models only).

Applications

Weighing, Parts Counting

Display

Backlit liquid crystal display (LCD), 3 color checkweighing LEDs

Operation

Power cord (included) or rechargeable battery (included)

Communication

Easy access communication port with RS232 interface (included)

Construction

NEMA 4X/IP65 stainless steel indicator with hinged front-cover, 5mm fixed top plate, wall bracket, epoxy painted steel platform and frame, NEMA 4/IP67 plastic junction box with side access, 4 IP67 NTEP alloy steel load cells, painted steel ramps (accessories sold separately)

Design Features

125% overload protection

Specifications

Maximum Capacity	2,500 lb (1,000 kg)
Readability	0.5 lb (0.2 kg)
Readability (Certified)	0.5 lb (0.2 kg)
Platform Size	4 ft x 4 ft (1,219 mm x 1,219 mm)
Battery Life	58 Hours with Rechargeable Battery
Communication	RS232 (Included)
Dimensions	4 ft x 4.5 in x 4 ft (1,219 mm x 115 mm x 1,219 mm) (LxHxW)
Display	LCD with white LED backlight
Legal for Trade	NTEP Certified
Net Weight	229 lb (104 kg)
Outputs	Not applicable
Platform Construction	Painted Steel Diamond Plate
Power	AC Power (Included);Rechargeable Battery (Included)
Protection Rating	IP 65
Tare Range	To capacity by subtraction
Units of Measurement	Gram;Kilogram;Pound;Ounce;Pound:Ounce
Working Environment	14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
