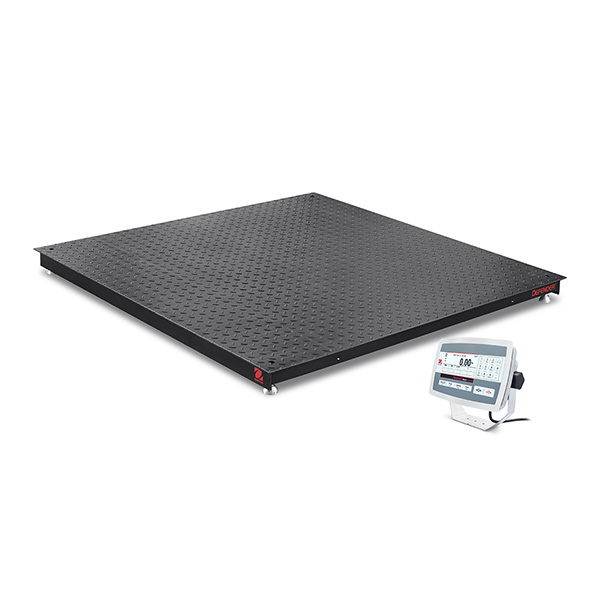

Defender™ 5000 Floor Scales - i-DF52

Floor Scales for Standard Industrial Applications
Defender 5000 Series Floor Scales meet advanced weighing needs for industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features software for Counting, Checkweighing, Accumulation, Display Hold, and other modes. Ramps and mounting plates are available.
Defender™ 5000 Floor Scales - i-DF52 Features
Painted carbon steel, treaded decks with four alloy steel load cells, fixed top plate (5 mm/0.196 in. thick) with structural bracing for stiff construction.
Platforms available in sizes of 3x3 ft and 4x4 ft and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs.
Equipped with a new TD52 series indicator featuring an easy-to-use keypad, large backlit display, and plain text on-screen prompts to guide you through operation.
Defender™ 5000 Floor Scales - i-DF52 Models
Maximum Capacity

Show More
Readability

Show More
Readability (Certified)

Show More
Platform Size

Show More
Battery Life
Show More
Legal for Trade
Show More
Maximum Capacity
2,500 lb (1,250 kg)
Readability
0.5 lb (0.2 kg)
Readability (Certified)
0.5 lb (0.5 kg)
Maximum Capacity
2,500 lb (1,250 kg)
Readability
0.5 lb (0.2 kg)
Readability (Certified)
0.5 lb (0.5 kg)
Maximum Capacity
2,500 lb (1,250 kg)
Readability
0.5 lb (0.2 kg)
Readability (Certified)
0.5 lb (0.5 kg)
Maximum Capacity
2,500 lb (1,250 kg)
Readability
0.5 lb (0.2 kg)
Readability (Certified)
0.5 lb (0.5 kg)
Maximum Capacity
5,000 lb (2,500 kg)
Readability
1 lb (0.5 kg)
Readability (Certified)
1 lb (0.5 kg)
Maximum Capacity
5,000 lb (2,500 kg)
Readability
1 lb (0.5 kg)
Readability (Certified)
1 lb (0.5 kg)
Defender™ 5000 Floor Scales - i-DF52 Product Details
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold), Filling
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
ABS plastic or 304 stainless steel indicator, 5 mm/0.196 in. fixed top plate, black painted steel treaded platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available
Design Features
Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)
