Indicators

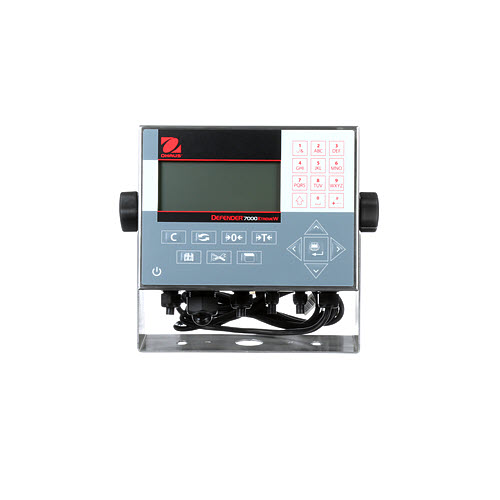

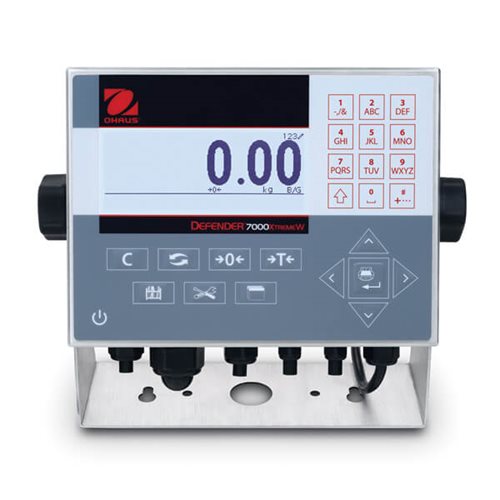

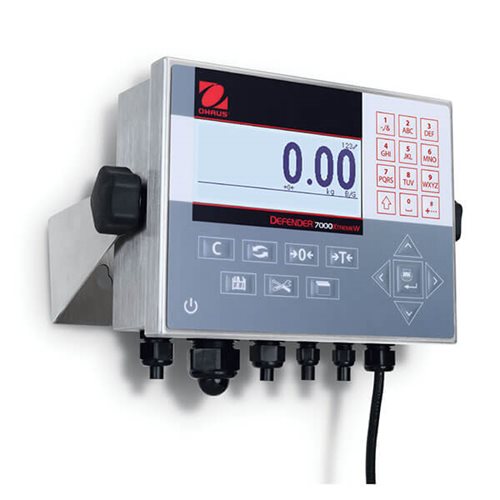

T72XW

Advanced Performance Stainless Steel Indicator with External Device Control Capabilities
The OHAUS T72XW indicator provides the flexibility, performance and operation necessary for specific applications with connectivity and data output capabilities - including vehicle weighing, over/under checkweighing, animal weighing and counting. The 7000 series indicator has multiple functions, intuitive software, multiple connectivity options, and the durability to stand up to the wear-and-tear in industrial settings.

Request a Quote

Features
T72XW Features
With a 50,000 displayed resolution and the ability to support up to 10 load cells, T72XW was designed for heavy-duty industrial applications such as vehicle weighing.
Two option slots are available to enable a wide range of connectivity interfaces. Control external devices using the discrete I/O interface and transfer data through the serial, USB or Ethernet ports.
T72XW is very easy to set up and navigate - featuring a vivid graphic display with on-screen prompts and an alphanumeric keypad with designated keys for common functions such as Tare & ID information.
Models
T72XW Models
Compare Models
Filter_Models
Resolution
Resolution (Certified)
Battery Life
Outputs
Second Scale Input
Protection Rating
Compare Models
Models #: T72XW
MSRP :


Add to Comparison Remove Comparison
Resolution
50,000
Resolution (Certified)
6,000
Battery Life
Not Applicable
Generate a Quote Request a Quote
Add To Quote List Remove From Quote List
Details
T72XW Product Details
Applications
Weighing, Parts Counting, Checkweighing, Animal/Dynamic Weighing, Vehicle Weighing
Display
Transflective graphic LCD with white backlight, 240 x 96 pixels
Operation
AC power (included)
Communication
Easy access communication port including RS232 (included), USB, Ethernet and second RS232 or RS485 (accessories sold separately). GLP/GMP data output with real-time clock.
Construction
IP66/NEMA 4X stainless steel housing and mounting bracket
Design Features
Checkweighing lights with selectable operation and audible signal settings, sealed front panel, 5 operating languages (English, Spanish, French, German and Italian), selectable environmental and auto-print settings, stability and overload/underload indicators
