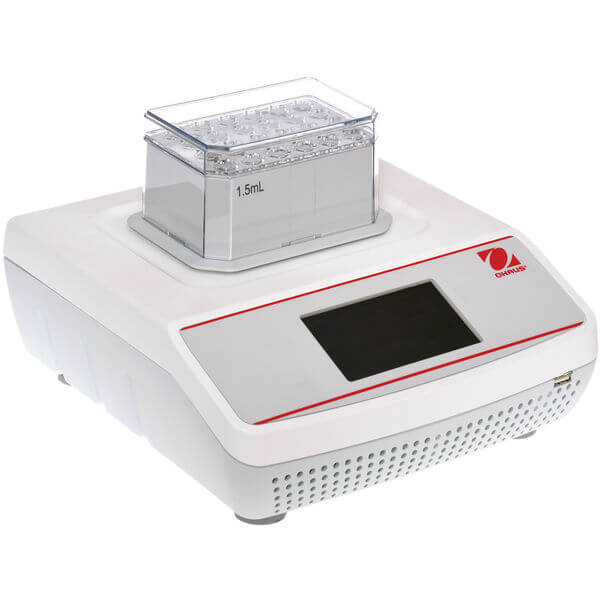

Incubating Cooling Thermal Shakers

Industry Leading Thermal Shaker with Exceptional Heating/Cooling Performance with High Speed Shaking

ISTHBLCTS

Motion	Orbital, 3 mm
Capacity	1 Thermal block
Temp. Range	17°C below Ambient – 100°C
Item Number:	30391998

Request a Quote ADD TO QUOTE LIST

View All Incubating Cooling Thermal Shakers Models

Overview
Specs
Accessories
Documents

Overview

OHAUS Thermal Shakers are designed for heating and cooling applications that require consistent and precise high-speed shaking with dependable temperature control from 17°C below ambient to 100°C. Temperature can be user-calibrated when precision is required. Customize applications with interchangeable blocks to accommodate tubes & microplates. Intuitive touchscreen allows the user to view all steps of the program while monitoring the progress.

Applications

DNA, RNA, Cell Cultures, Hybridizations, Protein Studies

Display

4.3 inch (10.9 cm) color touchscreen Liquid Crystal Display (LCD) which can be programmed in six languages

Operation

Detachable 3-wire cord and plug (included), unit requires a block - compatible with Eppendorf Thermomixer™ R blocks

Communication

USB port provides greater flexibility in data collection and transfer

Construction

Valox cool touch housing, removable plastic rack, cover and screwdriver for block removal (included)

Design Features

Hot top indicator, audible alarm, maximum temperature limiting function, temperature priority function, pulse/quick mix mode, temperature calibration mode, temperature ramp rate function

Specifications

Motion	Orbital, 3 mm
Capacity	1 Thermal block
Temp. Range	17°C below Ambient – 100°C
Speed Range	300 rpm – 3000 rpm
Blocks Included	24 X 1.5 mL tube block, rack and cover
Calibration	Temperature calibration
Communication	USB
Control	Touch
Cooling rate	Above ambient 2-3°C/min
Dimensions	10.6 in x 5.4 in x 10.03 in (269 mm x 137 mm x 262 mm) (LxHxW)
Drive System	Brushless DC Motor
Heating Rate	5°C/min
Net Weight	10.8 lb (4.9 kg)
Orbit	0.1 in (3 mm)
Power	230V, 0.9A, 50/60Hz
Power Consumption	210 W
Safety Certification	CE;TUV
Speed Accuracy	±2%
Speed Range	300 rpm – 3000 rpm
Temperature accuracy (±)	+/- 0.5°C between 20°C and 45°C;+/-2°C below 20°C and 45°C
Timer	1 second – 99 hours, 59 minutes
Working Environment	41°F – 95°F, 80%RH, non-condensing (5°C – 35°C, 80%RH, non-condensing)
