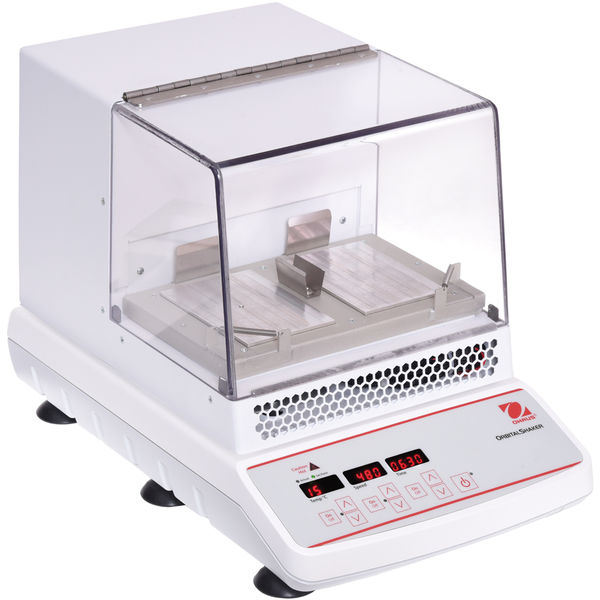

Incubating Cooling Orbital Shakers
Innovatively Designed Incubating Orbital Shaker to Heat, Cool and Shake Samples

ISICMBCDG

Motion Orbital, 3 mm
Capacity 2 Microplates or 2 Modular Blocks
Temp. Range 10°C below Ambient – 65°C
Item Number: 30391940
Overview
OHAUS Incubating Cooling Shakers are innovatively designed to incubate samples from 10°C below ambient to 65°C providing accurate and repeatable results. All models feature independent displays with intuitive touchpad controls and include safety features that protect both the user and samples. Sturdy shakers feature triple eccentric drive systems for stable orbital motion with microprocessor-control for reliable shaking action.
Applications
Immunoassays, Hybridizations, Cell Cultures, Bacterial & Yeast Cultures and Suspensions, ELISA Assays, PCR, Enzyme Reactions
Display
Easy-to-read, independent LED displays for temperature, speed and time allow the operator to view all settings simultaneously
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Cast aluminum housing with polycarbonate lid, brushless DC motor
Design Features
Spill-resistant design, overload protection, caution hot indicator
Specifications
Motion Orbital, 3 mm
Capacity 2 Microplates or 2 Modular Blocks
Temp. Range 10°C below Ambient – 65°C
Uniformity ± 0.5°C at 37°C
Speed Range 100 rpm – 1200 rpm
Speed Range - Microplates 100 to 1200 rpm
Speed Range - Modular Blocks 100 to 600 rpm
Calibration Temperature calibration
Control Digital
Dimensions 17.9 in x 10.5 in x 11 in (45.5 cm x 26.7 cm x 27.9 cm) (LxHxW)
Drive System Triple Eccentric;Brushless DC Motor
Net Weight 29.5 lb (13.4 kg)
Orbit 0.1 in (3 mm)
Power 230V, 1A, 50/60Hz
Power Consumption 200 W
Safety Certification CE;TUV
Speed Accuracy ±2%
Speed Range 100 rpm – 1200 rpm
Timer 1 second – 160 hours
Working Environment 41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
Accessories

Item Number

30400157

Description

Module Block 0.5 mL Microtaper

Item Number

30400159

Description

Module Block 1.5 mL Microtaper

Item Number

30400151

Description

Module Block 10 mm Test Tube

Item Number

30400152

Description

Module Block 12/13 mm 20 Hole

Item Number

30400172

Description

Module Block 15 mL Conical Centrifuge

Item Number

30400168

Description

Module Block 50mLConical Centrifuge

Item Number

30400158

Description

Module Block 6 mm Test Tube

Item Number

30400156

Description

Module Block Combination

Item Number

30400194

Description

Module Block Combo - Micro Tube

Item Number

30400193

Description

Module Block Combo, 50 mL, 15 mL, 1.5 mL

Item Number

30400182

Description

Module Block For Vials 12 mm

Item Number

30400183

Description

Module Block For Vials 15 mm

Item Number

30400190

Description

Module Block For Vials 16 mm

Item Number

30400184

Description

Module Block For Vials 17 mm

Item Number

30400185

Description

Module Block For Vials 19 mm

Item Number

30400186

Description

Module Block For Vials 21 mm

Item Number

30400187

Description

Module Block For Vials 23 mm

Item Number

30400188

Description

Module Block For Vials 25 mm

Item Number

30400189

Description

Module Block For Vials 28 mm

Item Number

30400191

Description

Module Block, 2.0 mL Tube
