Frontier™ 5000 Rotors
Offering Flexibility to Maximize Sample Preparation

R-S6xMTP/4MI

Maximum Speed 4,500 rpm
Maximum Relative Centrifuge Force (x g) 2,716 g
Maximum Capacity(Rotor) 2 x 3MTP
Item Number: 30314824
Overview
Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.
Applications
Centrifugation Accessory
Display
N/A
Operation
N/A
Communication
N/A
Construction
Aluminum or polypropylene material
Design Features
Easy-installation
Specifications
Maximum Speed 4,500 rpm
Maximum Relative Centrifuge Force (x g) 2,716 g
Maximum Capacity(Rotor) 2 x 3MTP
Tube diameter without adapter N/A
Outer/Inner Radius 120 mm
Rotor Style Swing out
Aerosol tight Not applicable
Acceleration Time (sec) 20 / 452
Angle 0-90°
Compatible Models FC5816R;FC5718R;FC5816;FC5718;FC5714
Deceleration Time (sec) 15 / 616
Dimensions 9.61 in (244 mm)
Maximum loading weight 620 g
Multiple Maximum Speeds No
Net Weight 3.62 lb (1.64 kg)
Working Environment -4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: <95%)
Accessories

Item Number

30314891

Description

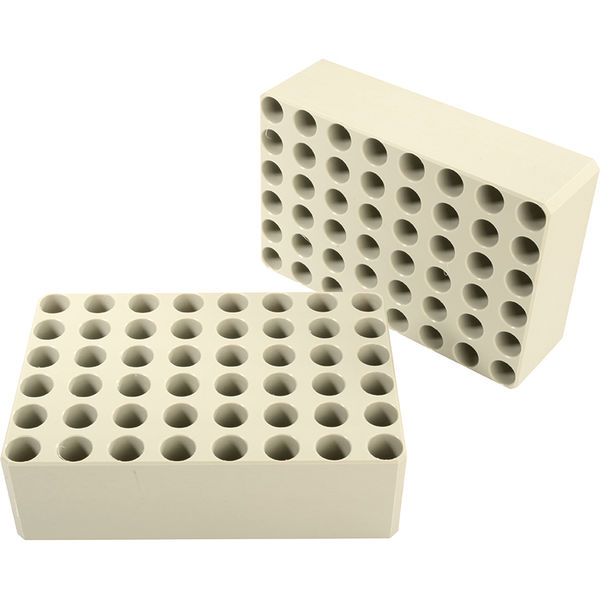

Adapter 48x1.5/2.0ml D11mm 2/pk

Item Number

30314890

Description

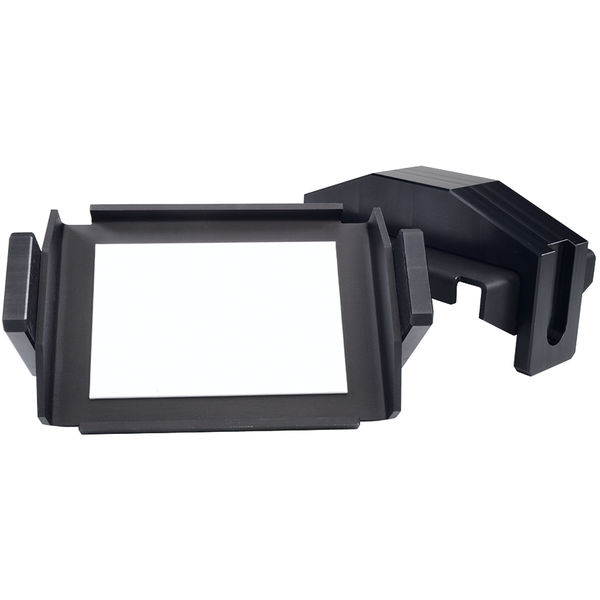

Bucket 3xMTP 2/pk
