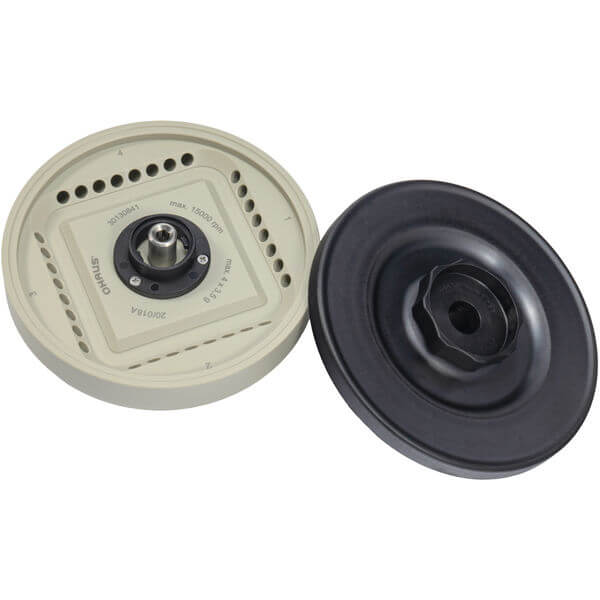

Frontier™ 5000 Rotors
Offering Flexibility to Maximize Sample Preparation

R-A4XPCR/15MI

Maximum Speed 15,000 rpm
Maximum Relative Centrifuge Force (x g) 15,343 g
Maximum Capacity(Rotor) 4 x 8-w PCR Strip
Item Number: 30314841
Request a Quote ADD TO QUOTE LIST
View All Frontier™ 5000 Rotors Models
Overview
Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.
Applications
Centrifugation Accessory
Display
N/A
Operation
N/A
Communication
N/A
Construction
Aluminum or polypropylene material
Design Features
Easy-installation
Specifications
Maximum Speed 15,000 rpm
Maximum Relative Centrifuge Force (x g) 15,343 g
Maximum Capacity(Rotor) 4 x 8-w PCR Strip
Tube diameter without adapter N/A
Outer/Inner Radius 61 mm
Rotor Style Angle
Aerosol tight Not applicable
Acceleration Time (sec) 16 / 130
Angle 45°
Compatible Models FC5718R;FC5718
Deceleration Time (sec) 12 / 130
Dimensions 4.96 in (126 mm)
Maximum loading weight 14 g
Multiple Maximum Speeds No
Net Weight 2.72 lb (1.23 kg)
Working Environment -4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: <95%)
