Frontier™ 5000 Rotors
Offering Flexibility to Maximize Sample Preparation

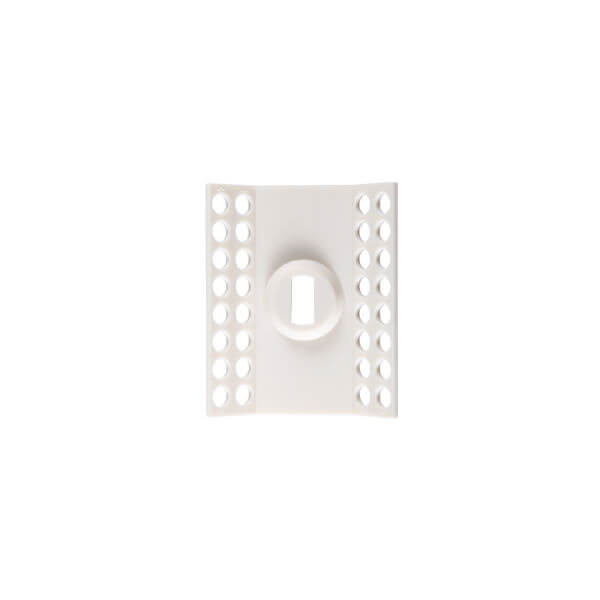

R-A4xPCR/6

Maximum Speed 6,000 rpm
Maximum Relative Centrifuge Force (x g) 2,260 g
Maximum Capacity(Rotor) 4 x 0.2 ml PCR8
Item Number: 30129560
Request a Quote ADD TO QUOTE LIST
View All Frontier™ 5000 Rotors Models
Overview
Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.
Applications
Centrifugation Accessory
Display
N/A
Operation
N/A
Communication
N/A
Construction
Aluminum or polypropylene material
Design Features
Easy-installation
Specifications
Maximum Speed 6,000 rpm
Maximum Relative Centrifuge Force (x g) 2,260 g
Maximum Capacity(Rotor) 4 x 0.2 ml PCR8
Tube diameter without adapter 12 mm / 2.0 ml,1.5 ml
Outer/Inner Radius 32 mm
Rotor Style PCR
Aerosol tight Not applicable
Acceleration Time (sec) 2 / 2
Angle 45°
Deceleration Time (sec) 2 / 2
Dimensions 2.99 in x 0.75 in x 2.44 in x 1.22 in (76 mm x 19 mm x 62 mm x 31 mm) (LxHxWxØ)
Maximum loading height 45 mm
Maximum loading weight 27 g
Multiple Maximum Speeds No
Net Weight 0.03 lb (12.2 g)
Working Environment 41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
