SJX322/E

Maximum Capacity	320 g
Readability	0.01 g
Pan Size	4.7 in (120 mm)
Item Number:	30268928

Request a Quote ADD TO QUOTE LIST

View All Scout™ SJX Models

Overview
Specs
Accessories
Documents

Overview

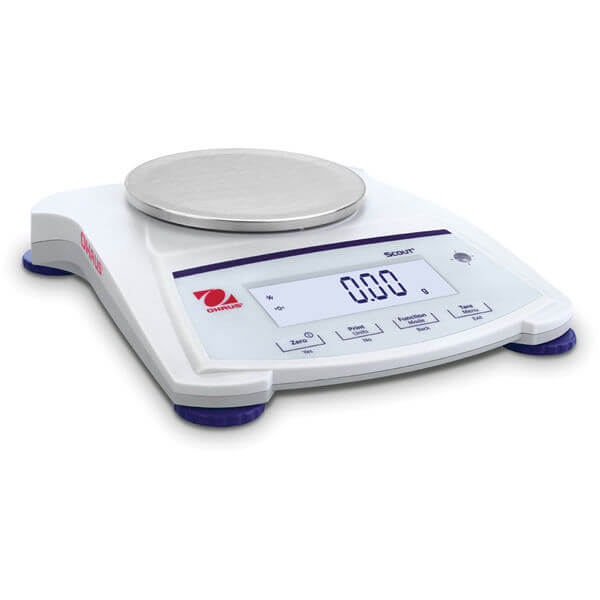

Designed for a wide range of regular and trading applications, the Class ll certified SJX Carat and Gold balances are ideal for weighing jewelry, precious metals, gemstones etc. Equipped with superior overload protection, large backlit display, fast stabilization time, multiple weighing units, application modes and connectivity options, these slim balances offer a truly user-friendly weighing experience.

Applications

Weighing, Parts Counting, Percent Weighing, Check Weighing, Totalization, Density Determination, Display Hold

Display

Liquid crystal display (LCD) with backlight

Operation

AC Adapter (Included) or 4 AA Batteries (Not included)

Communication

RS232, USB Host, USB Device, Ethernet or Bluetooth™ (available as an accessory)

Construction

ABS housing, stainless steel pan, ABS draftshield (1mg model only), weigh below hook, transportation lock, manual calibration lock switch, security slot, adjustable leveling feet, illuminated up-front level indicator

Design Features

Stability indicator, mechanical and software overload/underload protection, low battery indicator, auto shut-off, auto tare, scoop on 64g model, weight on 64g SJX/E model only

Specifications

Maximum Capacity	320 g
Readability	0.01 g
Pan Size	4.7 in (120 mm)
Battery Life	80 Hours with Disposable Batteries
Communication	Ethernet (Available as an Accessory);RS232 (Available as an Accessory);USB Host (Available as an Accessory);USB Device (Available as an Accessory)
Auxiliary Display Model	Available as an Accessory
Dimensions	8.8 in x 2.1 in x 8 in (224 mm x 54 mm x 202 mm) (LxHxW)
Display	Large backlit LCD
Internal Calibration	Not Applicable
In-Use Cover	Available as an Accessory
Legal for Trade	Not Applicable
Linearity ±	0.01 g
Net Weight	2.2 lb (1 kg)
Pan Construction	Stainless Steel
Power	4 AA (LR6) Batteries (Not Included);AC Adapter (Included)
Repeatability, typical	0.01 g
Stabilization Time	1 s
Tare Range	To capacity by subtraction
Transportation Case	Available as an Accessory
Units of Measurement	Singapore Tael;Ounce Troy;Pennyweight;Taiwan Tael;Grain;Gram;Hong Kong Tael;Tola;Tical;Carat;Ounce
Working Environment	50°F – 104°F, 80%RH, non-condensing (10°C – 40°C, 80%RH, non-condensing)
