Defender™ 5000 Washdown Floor Scales - i-DF52xxxT1

Multifunctional Stainless Steel Floor Scale for Standard Washdown Industrial Applications

DF52XW1500T1L

Maximum Capacity	1,500 kg
Readability	0.2 kg
Readability (Certified)	0.5 kg
Item Number:	30943451

Request a Quote ADD TO QUOTE LIST

View All Defender™ 5000 Washdown Floor Scales - i-DF52xxxT1 Models

Overview
Specs
Accessories
Documents

Overview

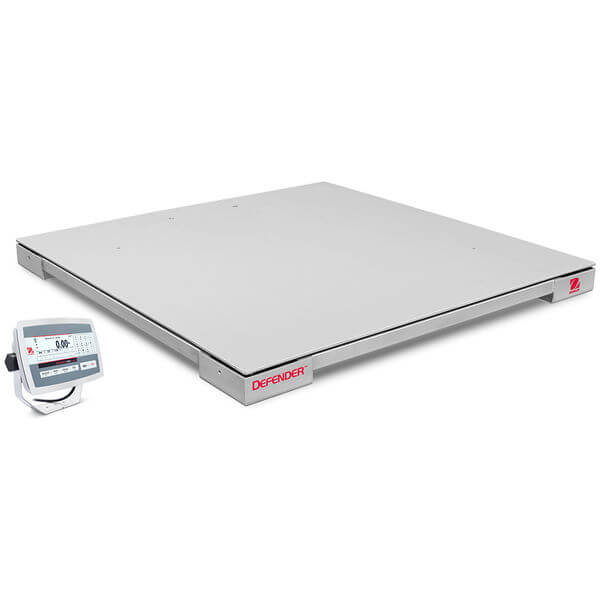

The OHAUS next generation Defender 5000 Series Floor Scale is a solid lineup of stainless steel floor and pit mount scales that do not compromise on quality for industrial applications. Powered by four IP68 hermetically sealed load cells that will withstand years of daily usage in industrial environments, these scales offer a unique combination of affordability, versatility and quality that your company can depend on for years and years.

Applications

Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold), Filling

Display

Backlit Liquid Crystal Display (LCD), 256 x 80 pixels

Operation

Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)

Communication

Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock

Construction

304-grade IP68 stainless steel indicator, bead blasted stainless steel platform, stainless steel junction box with top access, IP68 OIML R60 stainless steel hermetically sealed load cells

Design Features

150% overload capacity protection, checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, brightness adjustment, screensaver, auto tare

Specifications

Maximum Capacity	1,500 kg
Readability	0.2 kg
Readability (Certified)	0.5 kg
Platform Size	1,250 mm x 1,250 mm
Dimensions	1,250 mm x 90 mm x 1,250 mm (LxHxW)
Battery Life	10 Hours with Rechargeable Battery
Legal for Trade	OIML Approvable
Tare Range	To capacity by subtraction
Working Environment	-10°C – 40°C, 85%RH, non-condensing
Platform Construction	Stainless Steel
Net Weight	159 kg
Protection Rating	IP66
Communication	Ethernet (Available as an Accessory);2nd RS232/RS485/USB (available as an accessory);RS232 (Included);USB Host (Available as an Accessory);WiFi/Bluetooth (available as an accessory)
Power	Rechargeable Battery (Not Included);AC Power (Included)
Units of Measurement	Metric Tons;Kilogram;Pound;Tonne;Custom
Display	Dot matrix LCD with white LED backlight
Outputs	4 - 20mA;2 In/4 Out digital I/O
