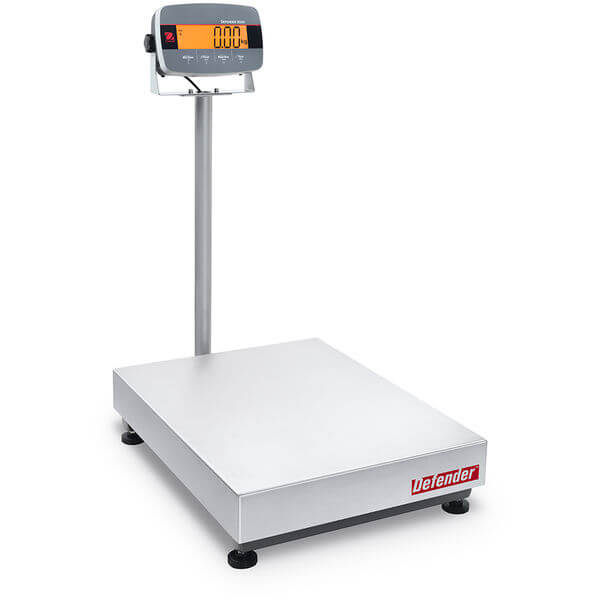

Defender™ 3000 - i-D33
Bench Scales for Basic Industrial Applications

D33P150B1X2

Maximum Capacity 150 kg
Readability 10 g
Readability (Certified) 50 g
Item Number: 30684703
Overview
The Defender 3000 Series bench scales are ideal for general weighing, simple counting, and checkweighing applications in production, packaging, warehouse, inventory, shipping, and receiving areas. The Defender 3000 Series features a simple, yet rugged tubular-frame base design and indicators with tactile keys, multicolor backlit LCD display, AC or battery operation, and flexible mounting capabilities.
Applications
Weighing, Checkweighing, Counting, Totalization.
Display
7 Segment LCD with multicolor backlight
Operation
AC Power (included), 6C (LR14) Batteries (not included), or Rechargeable Battery
Communication
Standard RS232 and optional USB Device or Ethernet
Construction
ABS plastic indicator, 304-stainless steel platform, powder-coated steel tubular frame, aluminum load cell, non-slip adjustable rubber feet
Design Features
150% overload protection
Specifications
Maximum Capacity 150 kg
Readability 10 g
Readability (Certified) 50 g
Platform Size 650 mm x 500 mm
Legal for Trade Not Applicable
Power Rechargeable Battery (Included);AC Adapter (Included)
Dimensions 785 mm x 896 mm x 500 mm (LxHxW)
Tare Range To capacity by subtraction
Working Environment -10°C – 40°C, 85%RH, non-condensing
Platform Construction Stainless Steel
Net Weight 27.6 kg
Second Scale Input Not Applicable
Protection Rating Not Applicable
Communication Ethernet (Available as an Accessory);RS232 (Included);USB (Available as an Accessory)
Units of Measurement Kilogram;Gram;Pound;Ounce;Pound:Ounce
Display 7 Segment LCD with multicolor backlight
Battery Life 100 Hours with Rechargeable Battery
Outputs Not Applicable
Accessories

Item Number

80500525

Description

Cable RS232 IBM 9P Male-to-Female

Item Number

30045641

Description

Printer, Impact, SF40A

Item Number

30699121

Description

Dust Cover Set(5) i-DT33

Item Number

30429666

Description

Ethernet kit Defender Series

Item Number

30699120

Description

USB Device Interface Kit i-DT33

Item Number

30616409

Description

Wheel Kit SST Defender Series

Item Number

30372146

Description

Wheel Kit, Defender Series
