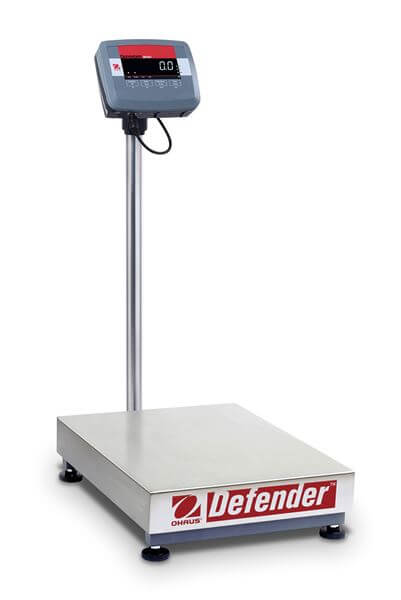

Defender™ 3000 - D32PE
Versatile Bench Scales Meet Basic Industrial Requirements for Dry Applications

D32PE60B2L2

Maximum Capacity 60 kg
Readability 10 g
Platform Size 550 mm x 420 mm
Item Number: 30529791
Overview
The OHAUS Defender 3000 Series line of bench scales is ideal for general weighing and simple counting applications in production, packaging, warehouse, inventory, shipping and receiving areas. The Defender 3000 Series features a simple, yet rugged tubular-frame base design and indicators with tactile keys, white LED display, built-in rechargeable battery operation.
Applications
Weighing, Parts Counting, Accumulation
Display
Light-emitting diode display (LED)
Operation
AC power (included) or rechargeable battery (included)
Communication
Easy Access RS232 communication port (included)
Construction
ABS housing
Design Features
Indicator with ABS plastic housing, white LED display, tactile mechanical keys, RS232C with manual/continuous/interval printing, hardware configuration lockout switch, internal lead-acid rechargeable battery and AC power. Software included for parts counting mode with selectable sample sizes and weighing totalization (Accumulation) functions. Selectable span calibration points, averaging level, auto-zero tracking and battery saving auto-off. Stainless steel pan with painted carbon steel tubular frame, non-slip rubber leveling feet with locking nuts, externally visible level bubble, aluminum alloy IP65 load cell, down-stops for overload protection
Specifications
Maximum Capacity 60 kg
Readability 10 g
Platform Size 550 mm x 420 mm
Legal for Trade Not Applicable
Power AC Power (Included);Rechargeable Battery (Included)
Dimensions 662 mm x 940 mm x 420 mm (LxHxW)
Battery Life 80 Hours with Rechargeable Battery
Tare Range To capacity by subtraction
Working Environment 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
Platform Construction Stainless Steel
Net Weight 18 kg
Second Scale Input Not Applicable
Protection Rating Not Applicable
Communication RS232 (Included)
Units of Measurement Gram;Kilogram;Pound
Display LED Display
Outputs Not Applicable
Accessories

Item Number

80500525

Description

Cable RS232 IBM 9P Male-to-Female

Item Number

30045641

Description

Printer, Impact, SF40A

Item Number

30304102

Description

Interface Kit, RS232-Ethernet

Item Number

30304101

Description

Interface Kit, RS232-USB

Item Number

30101017

Description

In-Use-Cover, T24P T31P

Item Number

30372146

Description

Wheel Kit, Defender Series
