I-D32PE300B2X2

Maximum Capacity	300 kg
Readability	50 g
Platform Size	650 mm x 500 mm
Item Number:	30529794

Request a Quote ADD TO QUOTE LIST

View All Defender™ 3000 - D32PE Models

Overview
Specs
Accessories
Documents

Overview

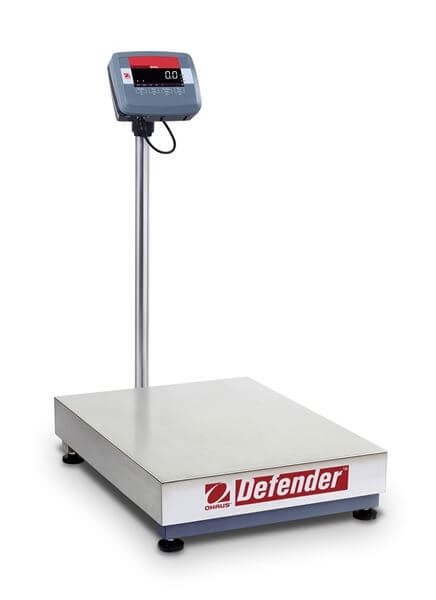

The OHAUS Defender 3000 Series line of bench scales is ideal for general weighing and simple counting applications in production, packaging, warehouse, inventory, shipping and receiving areas. The Defender 3000 Series features a simple, yet rugged tubular-frame base design and indicators with tactile keys, white LED display, built-in rechargeable battery operation.

Applications

Weighing, Parts Counting, Accumulation

Display

Light-emitting diode display (LED)

Operation

AC power (included) or rechargeable battery (included)

Communication

Easy Access RS232 communication port (included)

Construction

ABS housing

Design Features

Indicator with ABS plastic housing, white LED display, tactile mechanical keys, RS232C with manual/continuous/interval printing, hardware configuration lockout switch, internal lead-acid rechargeable battery and AC power. Software included for parts counting mode with selectable sample sizes and weighing totalization (Accumulation) functions. Selectable span calibration points, averaging level, auto-zero tracking and battery saving auto-off. Stainless steel pan with painted carbon steel tubular frame, non-slip rubber leveling feet with locking nuts, externally visible level bubble, aluminum alloy IP65 load cell, down-stops for overload protection

Specifications

Maximum Capacity	300 kg
Readability	50 g
Platform Size	650 mm x 500 mm
Legal for Trade	Not Applicable
Power	AC Power (Included);Rechargeable Battery (Included)
Dimensions	762 mm x 940 mm x 500 mm (LxHxW)
Battery Life	80 Hours with Rechargeable Battery
Tare Range	To capacity by subtraction
Working Environment	14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
Platform Construction	Stainless Steel
Net Weight	31.9 kg
Second Scale Input	Not Applicable
Protection Rating	Not Applicable
Communication	RS232 (Included)
Units of Measurement	Gram;Kilogram;Pound
Display	LED Display
Outputs	Not Applicable
