D600RTDV

Maximum Capacity	300 kg/600 kg
Readability	20 g;50 g
Platform Size	800 mm x 600 mm
Item Number:	30448427

Request a Quote ADD TO QUOTE LIST

View All Defender™ 5000 Base Models

Overview
Specs
Accessories
Documents

Overview

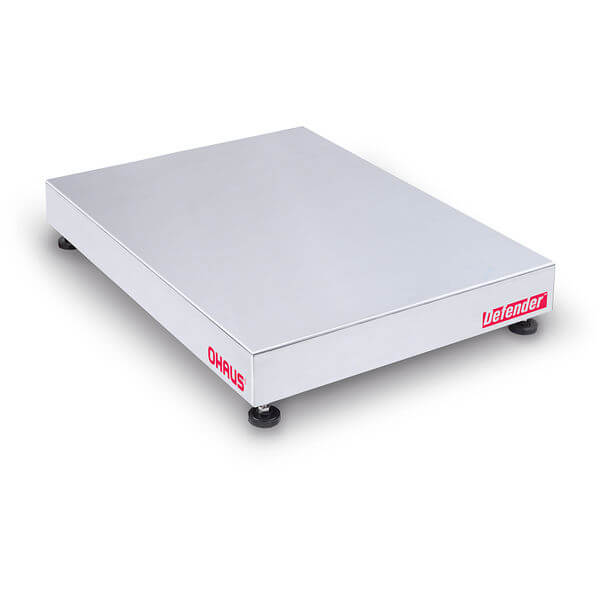

The OHAUS next generation Defender 5000 R Series base offers durability for the most demanding of industrial applications. The R series features moisture-protected single-point load cells, powder-coated steel construction, non-slip rubber adjustable feet, removable stainless steel weighing pans and integrated leveling bubbles. Maximum non-approved resolution of 1:15,000d meets the needs of industrial weighing applications that require extreme accuracy.

Applications

N/A

Display

N/A

Operation

N/A

Communication

N/A

Construction

304-grade stainless steel platform, sand grey powder-coated steel frame, aluminum load cell, non-slip adjustable rubber feet, level indicator

Design Features

150% capacity overload protection

Specifications

Maximum Capacity	300 kg/600 kg
Readability	20 g;50 g
Platform Size	800 mm x 600 mm
Legal for Trade	EC Type Approvable;OIML
Protection Rating	IP67
Dimensions	821 mm x 132 mm x 600 mm (LxHxW)
Net Weight	39 kg
Platform Construction	Stainless Steel
Working Environment	-10°C – 40°C, 80%RH, non-condensing
