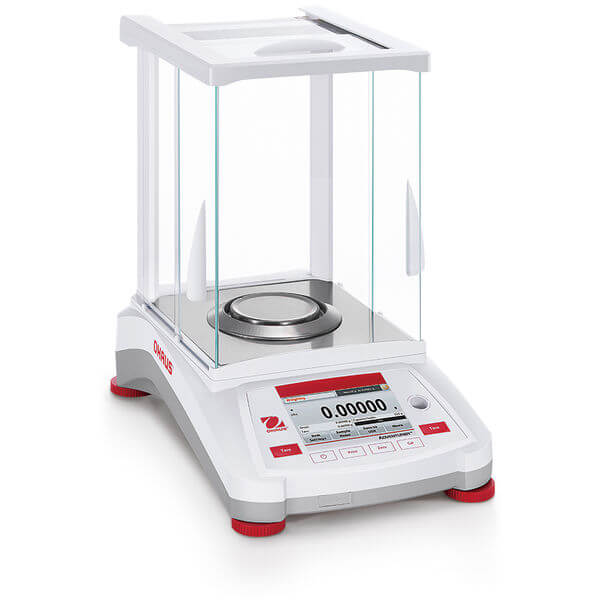

Adventurer™ Semi-Micro
Intuitive Balances Designed for Routine Weighing

AX125D

Maximum Capacity 82 g/120 g
Readability 0.00001 g;0.0001 g
Pan Size 3.15 in (80 mm)
Item Number: 30852304
Overview
Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, three-level user management to fulfill GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold, Batch Printing
Display
4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness
Operation
AC adapter (included)
Communication
RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
Construction
Metal base, ABS top housing, stainless steel pan, glass draftshield with 2-piece top mounted side doors & sliding top door (1mg models only), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, full housing in-use cover
Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages
Specifications
Maximum Capacity 82 g/120 g
Readability 0.00001 g;0.0001 g
Pan Size 3.15 in (80 mm)
Internal Calibration AutoCal™ - Automatic
Draftshield Included
Legal for Trade Not Applicable
Auxiliary Display Model Available as an Accessory
Dimensions 13.93 in x 13.39 in x 9.05 in (354 mm x 340 mm x 230 mm) (LxHxW)
Auto Door Not Applicable
Working Environment 10°C – 30°C, 80%RH, non-condensing
Net Weight 11.3 lb (5.1 kg)
In-Use Cover Included
Communication USB;RS232 (Included);USB Host
Power AC Adapter (Included)
Units of Measurement Singapore Tael;Ounce Troy;Pennyweight;Grain;Tical;Custom;Milligram;Momme;Newton;Baht;Taiwan Tael;Gram;Hong Kong Tael;Pound;Tola;Mesghal;Carat;Ounce
Display Full-Color 4.3 in Touchscreen WQVGA
Pan Construction Stainless Steel
Built-in Ionizer No
Stabilization Time 8 s
Repeatability, typical 0.00002 g;0.0001 g
Minimum Weight (USP, 0.1%, typical) 20 mg
Linearity ± 0.1 mg
Accessories

Item Number

80850043

Description

Anti-Theft Device Lab Balance

Item Number

30472064

Description

Auxiliary display AD7-RS

Item Number

80500525

Description

Cable RS232 IBM 9P Male-to-Female

Item Number

80252581

Description

Cable ST103-EX MB PA TxxP

Item Number

80500524

Description

Cable, 25 Pin-9 Pin, PC-TxxP

Item Number

83021085

Description

Cable, USB, Type A-B

Item Number

80253384

Description

Density Kit, Solids

Item Number

30093334

Description

Dust Cover, Balance with Draft Shield

Item Number

30304101

Description

Interface Kit, RS232-USB

Item Number

12120799

Description

Paper Roll 57.5mm,SF40A

Item Number

410024

Description

PC Cable 9 pin MB,DV,RD,DxxP,TxxP,PA,AV

Item Number

30130302

Description

Static Ionizer, ION-100A, AM
