Jewelry Scales

PJX Carat Series

Modern Compact Jewelry Balances for Accurate Weighing of Precious Metals and Stones
The PJX Series offers a range of Jewelry Balances for weighing precious metals and stones in a variety of capacities and readabilities. The PJX Series is OIMLapproved and ideal for legal-for-trade applications. The PJX features an auxiliary display that can be easily connected to provide simultaneous viewing of results for both trader and customer. Select models come with a built-in internal adjustment system.
PJX Carat Series Features
The PJX features a bright backlit LCD which displays results clearly. An auxiliary display can also be connected to allow both customer and trader to view weighing results simultaneously.
The PJX Series comes in a modern compact design, which is designed with saving space in mind. Additionally, keeping the draftshield lowered will help to get more stable weighing results.
Select PJX models come with a built-in internal adjustment system, which calibrates the balance automatically, ensuring weighing accuracy at all times.
PJX Carat Series Models
Maximum Capacity




Show More
Readability

Show More
Pan Size

Show More
Battery Life
Show More
Communication
Show More
Maximum Capacity
40 g/200 ct
Readability
0.0001 g;0.001 ct
Maximum Capacity
40 g/200 ct
Readability
0.0001 g;0.001 ct
Maximum Capacity
160 g/800 ct
Readability
0.0001 g;0.001 ct
Maximum Capacity
160 g/800 ct
Readability
0.0001 g;0.001 ct
Maximum Capacity
240 g/1,200 ct
Readability
0.0001 g;0.001 ct
Maximum Capacity
240 g/1,200 ct
Readability
0.0001 g;0.001 ct
Maximum Capacity
320 g/1,600 ct
Readability
0.001 g;0.005 ct
Maximum Capacity
320 g/1,600 ct
Readability
0.001 g;0.005 ct
Maximum Capacity
500 g/2,500 ct
Readability
0.001 g;0.005 ct
Maximum Capacity
500 g/2,500 ct
Readability
0.001 g;0.005 ct
PJX Carat Series Product Details
Applications
Basic Weighing, Parts Counting, Percent Weighing, Density Determination
Display
Backlit Liquid Crystal Display (LCD)
Operation
AC adapter (included)
Communication
RS232 interface and Mini-Din port (for connecting auxiliary display)
Construction
Metal base, plastic top housing, removable stainless steel pan, removable glass draftshield or side doors, integrated weigh-below-hook, security bracket, calibration lock and in-use cover
Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator

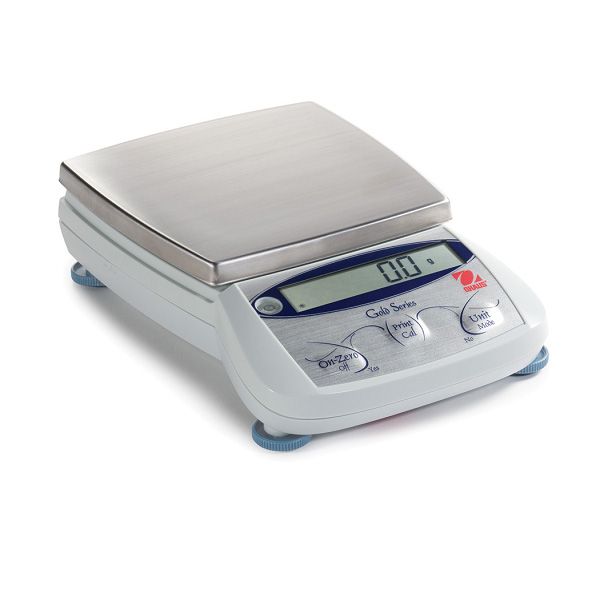

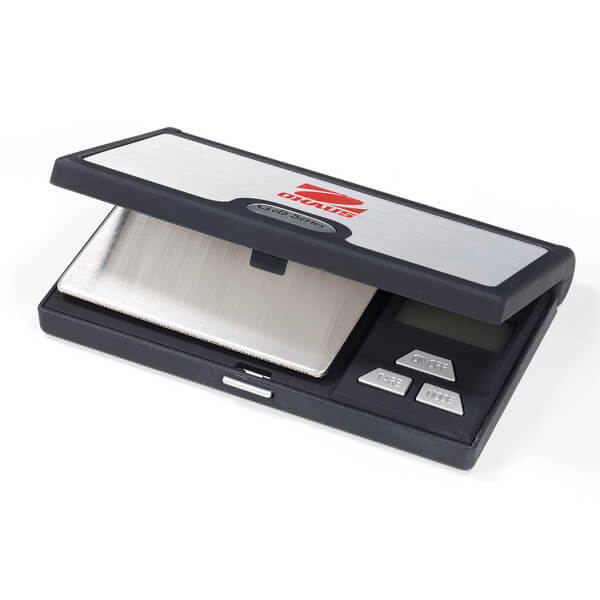

Similar Products
