Bench Scales

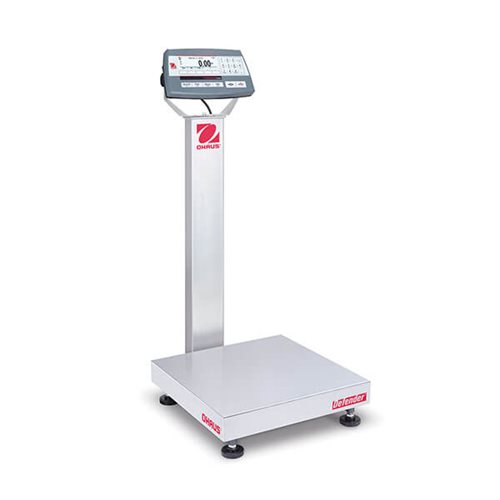

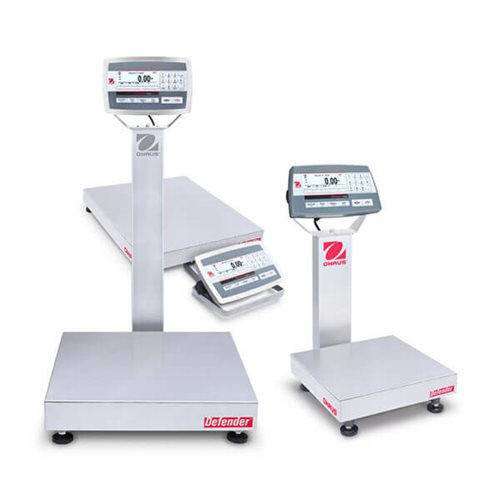

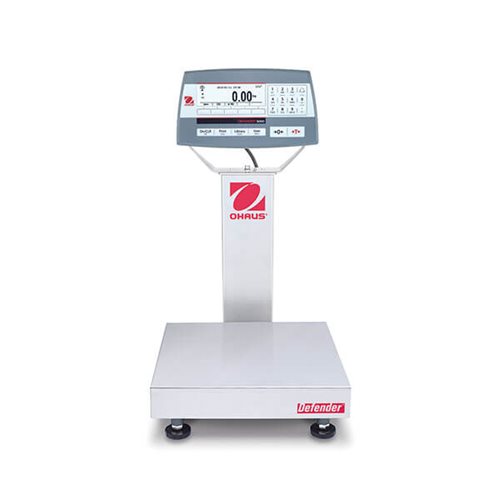

Defender™ 5000 - D52

Multifunctional Bench Scale for Standard Industrial Applications
The OHAUS next generation Defender 5000 Series multifunctional bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.
Defender™ 5000 - D52 Features
User-friendly model with an easy-to-use keypad, large backlit display and plain text on-screen prompts which guide you through operation.
Durable construction with a stainless steel platform, sand gray powder-coated steel frame & aluminum load cell. Defender meets NTEP/Measurement Canada or OIML/EC type approvals (depending on region).
Features common industrial modes and supports a 50,000-item library with 1,000 user profiles for easy data management. Includes GMP/GLP with time/date for result traceability.
Defender™ 5000 - D52 Models
Maximum Capacity






Show More
Readability






Show More
Readability (Certified)






Show More
Platform Size






Show More
Legal for Trade
Show More
Power
Show More
Maximum Capacity
3 kg/6 kg
Readability
0.2 g;0.5 g
Readability (Certified)
1 g;2 g
Maximum Capacity
3 kg/6 kg
Readability
0.2 g;0.5 g
Readability (Certified)
1 g;2 g
Maximum Capacity
6 kg/15 kg
Readability
0.5 g;1 g
Readability (Certified)
2 g;5 g
Maximum Capacity
6 kg/15 kg
Readability
0.5 g;1 g
Readability (Certified)
2 g;5 g
Maximum Capacity
6 kg/15 kg
Readability
0.5 g;1 g
Readability (Certified)
2 g;5 g
Maximum Capacity
6 kg/15 kg
Readability
0.5 g;1 g
Readability (Certified)
2 g;5 g
Maximum Capacity
6 kg/15 kg
Readability
0.5 g;1 g
Readability (Certified)
2 g;5 g
Maximum Capacity
6 kg/15 kg
Readability
0.5 g;1 g
Readability (Certified)
2 g;5 g
Maximum Capacity
15 kg/30 kg
Readability
1 g;2 g
Readability (Certified)
5 g;10 g
Maximum Capacity
15 kg/30 kg
Readability
1 g;2 g
Readability (Certified)
5 g;10 g
Maximum Capacity
15 kg/30 kg
Readability
1 g;2 g
Readability (Certified)
5 g;10 g
Maximum Capacity
15 kg/30 kg
Readability
1 g;2 g
Readability (Certified)
5 g;10 g
Maximum Capacity
30 kg/60 kg
Readability
2 g;5 g
Readability (Certified)
10 g;20 g
Maximum Capacity
30 kg/60 kg
Readability
2 g;5 g
Readability (Certified)
10 g;20 g
Maximum Capacity
30 kg/60 kg
Readability
2 g;5 g
Readability (Certified)
10 g;20 g
Maximum Capacity
30 kg/60 kg
Readability
2 g;5 g
Readability (Certified)
10 g;20 g
Maximum Capacity
30 kg/60 kg
Readability
2 g;5 g
Readability (Certified)
10 g;20 g
Maximum Capacity
30 kg/60 kg
Readability
2 g;5 g
Readability (Certified)
10 g;20 g
Maximum Capacity
30 kg/60 kg
Readability
2 g;5 g
Readability (Certified)
10 g;20 g
Maximum Capacity
30 kg/60 kg
Readability
2 g;5 g
Readability (Certified)
10 g;20 g
Maximum Capacity
30 kg/60 kg
Readability
2 g;5 g
Readability (Certified)
10 g;20 g
Maximum Capacity
60 kg/150 kg
Readability
5 g;10 g
Readability (Certified)
20 g;50 g
Maximum Capacity
60 kg/150 kg
Readability
5 g;10 g
Readability (Certified)
20 g;50 g
Maximum Capacity
60 kg/150 kg
Readability
5 g;10 g
Readability (Certified)
20 g;50 g
Maximum Capacity
60 kg/150 kg
Readability
5 g;10 g
Readability (Certified)
20 g;50 g
Maximum Capacity
60 kg/150 kg
Readability
5 g;10 g
Readability (Certified)
20 g;50 g
Maximum Capacity
60 kg/150 kg
Readability
5 g;10 g
Readability (Certified)
20 g;50 g
Maximum Capacity
150 kg/300 kg
Readability
10 g;20 g
Readability (Certified)
50 g;100 g
Maximum Capacity
150 kg/300 kg
Readability
10 g;20 g
Readability (Certified)
50 g;100 g
Maximum Capacity
300 kg/600 kg
Readability
20 g;50 g
Readability (Certified)
100 g;200 g
Defender™ 5000 - D52 Product Details
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold)
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction

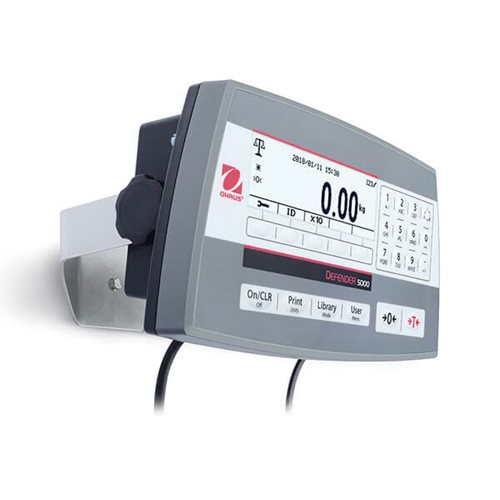

ABS plastic (TD52P) or stainless steel (TD52XW) indicator, 304-grade stainless steel platform with sand gray powder-coated steel frame, aluminum load cell, non-slip adjustable rubber feet
Design Features
User-configurable resolution up to dual range 15,000d/3,000e (25000d/5000d for NTEP), 150% overload capacity protection, checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, brightness adjustment, screensaver, auto tare
