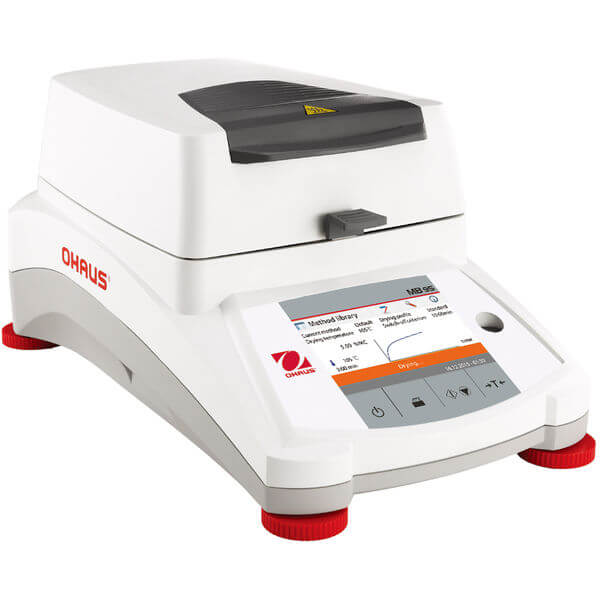

MB95

Combining Speed and Precision in One Moisture Analyzer – Test More Samples in Less Time

MB95

Maximum Capacity	90 g
Pan Size	90 mm
Heater Type	Halogen Lamp
Item Number:	30566900

Request a Quote ADD TO QUOTE LIST

View All MB95 Models

Overview
Specs
Accessories
Documents

Overview

The MB95’s halogen heating system distributes heat uniformly over the sample and speeds up the drying process — delivering fast and precise measurements. Designed for tool-free cleaning, the MB95’s components can be easily removed for quick and easy maintenance. Operating the MB95 is intuitive with the icon-driven menu navigation on the touchscreen display.

Applications

Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing

Display

4.3" TFT color touchscreen display

Operation

Power cord (included)

Communication

RS232 with GLP/GMP data output, USB Host and USB Device (included)

Construction

Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover

Design Features

Five Switch-off criteria (Manual, Timed, A30, A60 and A90), four drying profiles (standard, fast, ramp and step), storage up to 20 methods and 200 test results for all methods, user guide, 40°C to 200°C heating temperature range (1°C increments), 14 operational languages

Specifications

Maximum Capacity	90 g
Pan Size	90 mm
Heater Type	Halogen Lamp
Communication	USB device;USB host x 2;RS232
Dimensions	13.98 in x 7.9 in x 8.31 in (355 mm x 180 mm x 211 mm) (LxHxW)
Display	Full-Color 4.3 in Touchscreen WQVGA
Heating Profiles	Ramp;Standard;Step;Fast
In-Use Cover	Included
Moisture Range	0 % – 100 %
Net Weight	11.53 lb (5.23 kg)
Operating Range (Temp.)	10 °C – 40 °C
Power	115 v, 60 Hz
Sample Size	0.5 g – 90 g
Shut-Off Criteria	Timed;Manual;Automatic - Preset Weight Loss/Time
Temperature Range	40 °C – 200 °C
Test Library	20
Units of Measurement	%DC;Gram;%RG;%MC
Working Environment	50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85% RH, non-condensing)
